Stainless Steel Oval Point Grub Screw - Grade 202, 304, 316, A2, A2-70

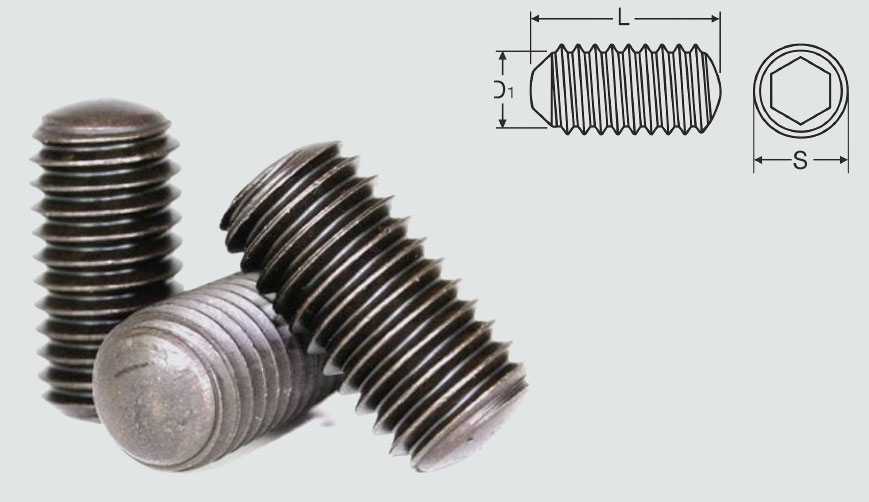

Oval Point Grub Screw, also known as set screws with oval ends, are a type of headless screw used to secure one object within or against another without protruding above the surface. The defining feature is the oval-shaped tip, which provides a gentler clamping action compared to other point types, reducing the risk of surface damage.

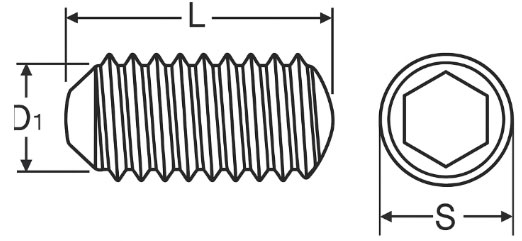

Technical Specifications – Oval Point Grub Screw
Here are the technical specifications for Oval Point Grub Screws:
| Parameter | Details |
| Product Name | Oval Point Grub Screw |
| Type | Set Screw (Grub Screw) |
| Point Type | Oval Point |
| Drive Type | Hex Socket / Slotted / Star (Varies by design) |
| Material | Stainless Steel (SS 304, SS 316), Alloy Steel, Carbon Steel |
| Finish/Coating | Black Oxide, Zinc Plated, Passivated, Plain |
| Thread Type | Metric (M) / Unified National Thread (UNC/UNF) |
| Thread Class | 6g (for Metric), 2A (for UNC/UNF) |
| Sizes (Metric) | M3 to M24 (Length: 4mm to 100mm) |
| Sizes (Inch) | #4-40 to 1" (Length: 3/16" to 4") |
| Tensile Strength | Up to 1220 MPa (for alloy steel variants) |
| Hardness | 45–53 HRC (for heat-treated alloy steel) |
| Standard Compliance | DIN 916 (with oval modification), ISO 4029 (modified), ASME B18.3 (mod.) |
| Application | Soft surface engagement, minimal surface damage, light load positioning |
- Point Type: Oval (rounded/elliptical tip)
- Head Type: Headless (grub/set screw)
- Drive Style: Hex socket (Allen key)
- Thread Type: Metric or UNC/UNF
- Material Options: Stainless Steel, Alloy Steel, Brass
- Finishes: Plain, Zinc Plated, Black Oxide, etc.
- Reusable: The oval shape allows for repeated adjustments.
- Preferred in: Electronics, light mechanical assemblies, rotating parts, and delicate fixtures.
- Non-marring point—prevents surface indentation or damage
- Suitable for soft materials (e.g., brass, aluminum)
- Can hold securely without creating a permanent mark
- Reusable in adjustable assemblies

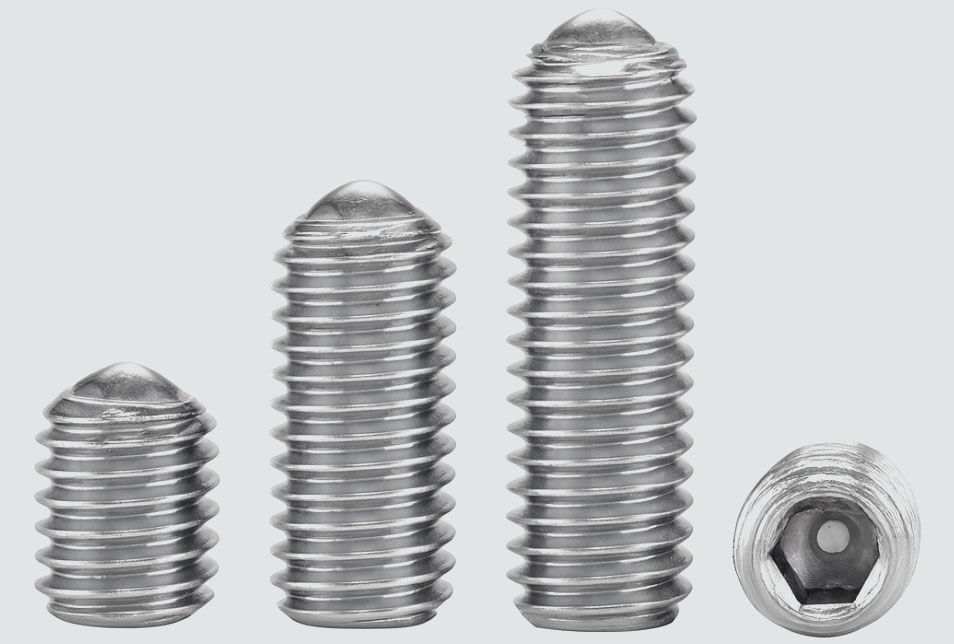

Oval point grub screw, also referred to as oval point set screws, have a rounded, oval-shaped tip that minimizes surface damage when fastened. They are commonly used to hold components in place by generating a clamping force, particularly in applications where rotating parts such as gears, pulleys, and collars are involved. Compared to flat or cup point screws, the oval point makes it easier to make adjustments without causing harm to the mating surface.
Thread Type
Metric or UNC/UNF
Material Options
Stainless Steel
Sizes (Metric)
M3 to M24
Tensile Strength
Up to 1220 MPa
