Stainless Steel Flat Head Rivet - Grade 202, 304, 316, A2, A2-70

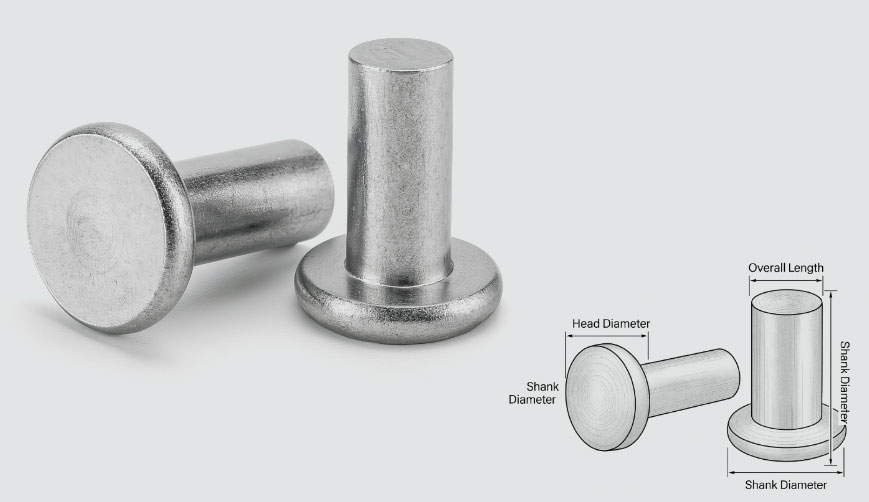

A Flat Head Rivet is a type of permanent mechanical fastener used to join two or more materials—typically metal or plastic—by inserting the rivet through pre-drilled holes and deforming its tail to create a second head. The defining feature of this rivet is its wide, flat head, which sits flush against the surface, providing a clean, low-profile finish.

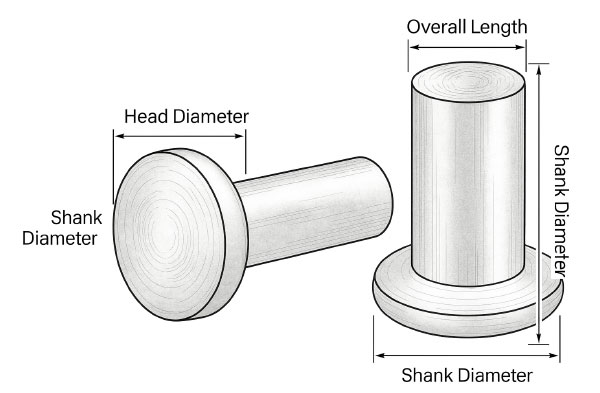

Flat Head Rivet – Technical Specification Table
Here is the Technical Specification Table for Flat Head Rivets (commonly in metric units, DIN 660 or ISO 1051 standards):
| Nominal Diameter (d) | Head Diameter (dk) | Head Height (k) | Length Range (L) | Hole Size (drill dia) | Material Options
|
| 2 mm | 4.0 mm | 0.7 mm | 4 – 20 mm | 2.1 – 2.2 mm | Aluminium, Brass, Steel |
| 3 mm | 6.0 mm | 1.0 mm | 5 – 30 mm | 3.1 – 3.2 mm | Steel, SS, Copper |
| 4 mm | 8.0 mm | 1.3 mm | 6 – 40 mm | 4.1 – 4.2 mm | SS 304, Aluminium |
| 5 mm | 10.0 mm | 1.6 mm | 8 – 50 mm | 5.1 – 5.3 mm | Steel, Brass |
| 6 mm | 12.0 mm | 2.0 mm | 10 – 60 mm | 6.2 – 6.4 mm | SS 316, Copper, Steel |
| 8 mm | 16.0 mm | 2.6 mm | 12 – 70 mm | 8.2 – 8.4 mm | Stainless Steel, Alloy |
- Low-profile head prevents snagging
- Provides strong and permanent joints
- Excellent for load distribution
- Corrosion-resistant (when made from stainless or coated materials)
- Standards Followed: DIN 660 / ISO 1051
- Tolerance: ±0.1 mm (varies by manufacturer)
- Head Type: 120° flat countersunk
- Finish Options: Zinc Plated, Black Oxide, Plain, Nickel
The flat head is a popular choice when it comes to blind rivets, as it offers a generous contact area on the material and allows for even distribution of weight. It works well with thinner, more malleable materials, providing a secure hold without causing damage.
Standards
DIN 660 / ISO 1051
Nominal Diameter
2mm to 8mm
Head Type
120° flat countersunk
Tolerance
±0.1 mm
