Stainless Steel Hexagon Socket Low Head Cap Screw

Stainless Steel Hexagon Socket Low Head Cap Screw - Grade 202, 304, 316, A2, A2-70

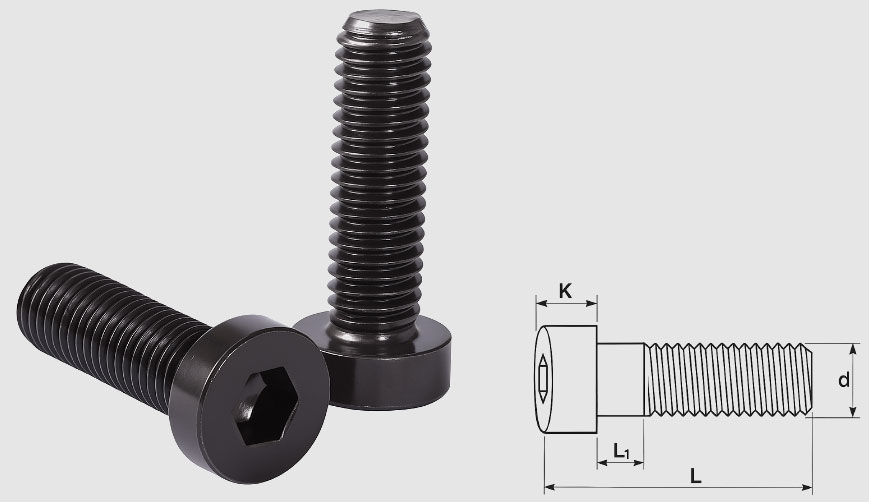

A Hexagon Socket Low Head Cap Screw is a type of threaded fastener known for its low-profile cylindrical head and internal hex drive. It is primarily used in assemblies where space is limited above the screw head, offering a compact fastening solution with high strength.

Here is a technical specification table for Hexagon Socket Low Head Cap Screws according to DIN 7984 / ISO 7379 (Metric series):

ANSI B 18.3
Size	Length
Size	F/T	H/T
1/4"	1" - 2 3/8"	1 1/2" - 2 3/8"
5/16"	1 1/4" - 2 3/4"	1 5/8" - 2 3/4"
3/8"	1 1/4" - 2 3/4"	1 5/8" - 2 3/4"
7/16"	1 1/2" - 3"	1 3/4" - 3 1/4"
1/2"	1 5/8" - 3"	2 1/4" - 3 1/4"

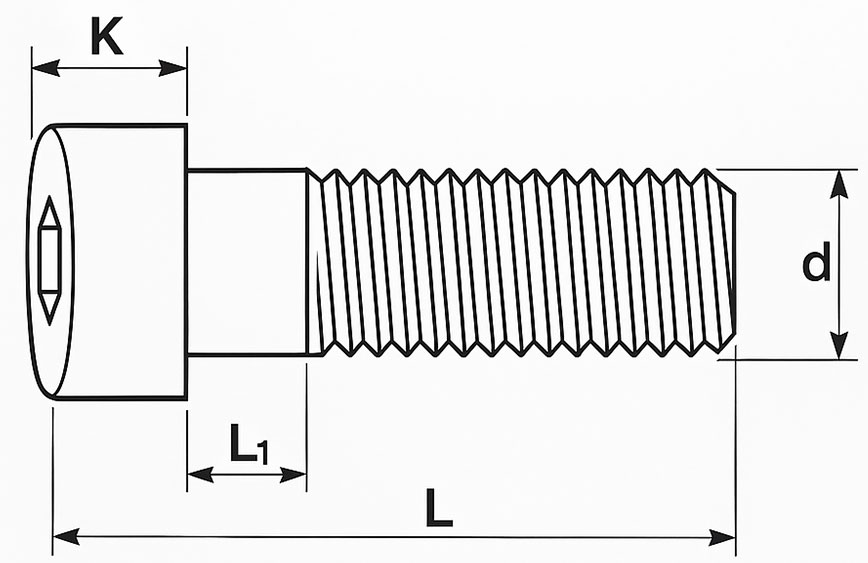

Hexagon Socket Low Head Cap Screw – Metric Specification

Nominal Size (d)	Thread Pitch (P)	Head Diameter (D)	Head Height (K)	Hex Socket Size (S)	Tensile Strength (Class
M3	0.5 mm	5.5 mm	2 mm	2 mm	1,000 MPa
M4	0.7 mm	7 mm	2.8 mm	2.5 mm	1,000 MPa
M5	0.8 mm	8.5 mm	3.5 mm	3 mm	1,000 MPa
M6	1.0 mm	10 mm	4 mm	4 mm	1,000 MPa
M8	1.25 mm	13 mm	5 mm	5 mm	1,000 MPa
M10	1.5 mm	16 mm	6 mm	6 mm	1,000 MPa
M12	1.75 mm	18 mm	7 mm	8 mm	1,000 MPa
M16	2.0 mm	24 mm	10 mm	10 mm	1,000 MPa

Introducing the Hexagon Socket Low Head Cap Screw: engineered for precision and performance. With its streamlined design, this fastener offers a low-profile solution without sacrificing strength or durability. Perfectly suited to meet industry standards and dimensions, it ensures seamless integration into your projects while providing exceptional grip and reliability. Choose our hex socket cap screw for an unbeatable blend of form and function!

Tensile Strength

≥1220 MPa

Yield Strength

≥1100 MPa

Elongation

≥12%

Hardness Max

45 HRC

Materials

Stainless Steel

Steel Grade

Finishing

Polished
Geomet
Dacromet
Teflon
Hot-Dip Galvanzing
Zinc (Yellow, White, Blue)
Black Qxide

Thread

Standards

Low Head Profile

The main difference lies in the shorter head height, as opposed to regular socket head cap screws, making them suitable for use in confined vertical spaces.

Hexagon Socket

The hexagonal recess, also known as a hex socket, offers a reliable and effective method for using a hex wrench or Allen key to tighten or loosen the screw.

Material

These options are widely found in the materials of stainless steel, carbon steel or alloy steel, providing various levels of protection against rust and durability.

Thread Type

Commonly include a coarse metric thread, ideal for various general uses.

Applications

Ideal for a variety of industries and purposes, such as machinery, automotive, and construction, where a durable and compact fastener is essential.

Benefits

Offer an unsoiled and evenly aligned aesthetic, especially beneficial when the screw head is visible.
